Customer Challenge: Visibility Bottlenecks in Clear Airspace
Paragliding is carried out under sunny conditions with good visibility, but pilots still need to maintain high visibility warnings to ground personnel and other aircraft. Existing products on the market have two core defects:
First, insufficient LED brightness, resulting in short warning range; Second, a narrow light coverage angle, making them difficult to identify from the side or at an angle.
Furthermore, the paragliding environment is bumpy, and landings are prone to impacts; conventional paramotor strobe light and shells are easily damaged by repeated impacts.
A Canadian customer approached us with paramotor strobe light samples, and their core requirementswere clear: to significantly improve brightness and viewing angle while maintaining portability, and at the same time control the overall cost to fit into the pricing space of a niche market.
Engineering Plan: From Two Concept Versions To Final Finalization
Based on the samples led beacon light by the client, we proposed two initial designs:

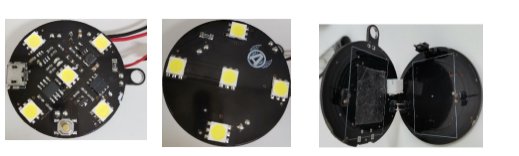

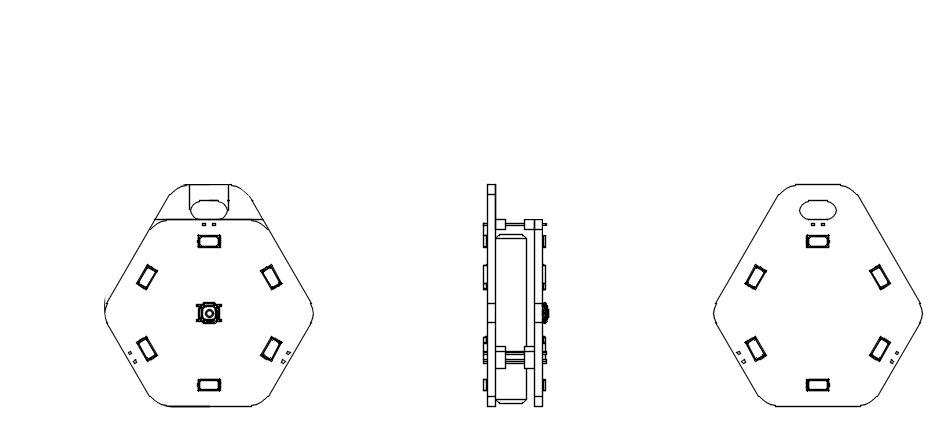

Hexagonal design:
Powered by a button battery, with a double-sided light panel and a PC or plastic casing. While compact, this design limited battery capacity, and its battery life could not meet the client's core requirement for extended usage time.

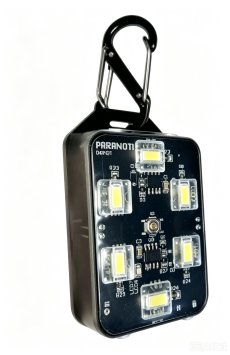

Rectangular solution:
Increased battery capacity, double-sided light panel, and plastic-encapsulated casing. Significantly improved battery life, minimalist design, and the plastic-encapsulation process eliminates the need for new molds, effectively helping customers reduce mold-making expenses and control overall costs.
Based on the customer's core requirements for high brightness and long battery life, a rectangular design was ultimately chosen. A Type-C charging port replaces the traditional Type-B, improving versatility—a standard mobile phone charging cable is sufficient for charging.
Product parameter and scene adaptation table
| Parameters | Specifications | Scene Meaning |
| luminous color | White, blue, red, yellow | Adapt to different airspace identification requirements |
| Rated current | ≤ 400mA | Balance brightness and power consumption |
| Battery capacity | > 1100mAh | Support> 2.5 hours endurance |
| Working tim | > 2.5 hours | Covering the entire flight of a single paraglider |
| Use temperature | -20 ℃ ~ 60 ℃ | Suitable for outdoor use in different climatic environments |
| Overall dimension | 65 × 35 × 16mm | Lightweight mounting, does not interfere with flight attitude |
| Weight | About 50g | Meet the requirements of lightweight paraglider equipment |
| Charge and discharge times | 500 times (full charge and discharge) | Meet the seasonal frequency of use |
| Charging voltage | DC 5V | Meet the charging voltage under multiple conditions |
| Waterproof performance | Not waterproof | Please paragliding in safe, sunny weather with open views |
| Charge and discharge temperature | Charge: 5 ℃-45 ℃, discharge:-20 ℃-60 ℃ | Meet seasonal use |

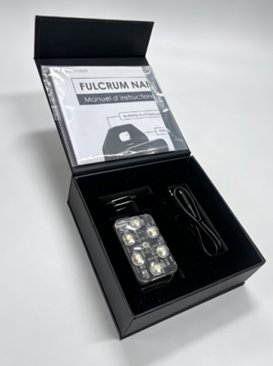

The product comes standard with quick-release clips, a USB charging cable, and an instruction manual, packaged in a custom shock-absorbing gift box, catering to the portability and protection needs of outdoor sports.
Proactive escalation: continuous iteration based on usage feedback

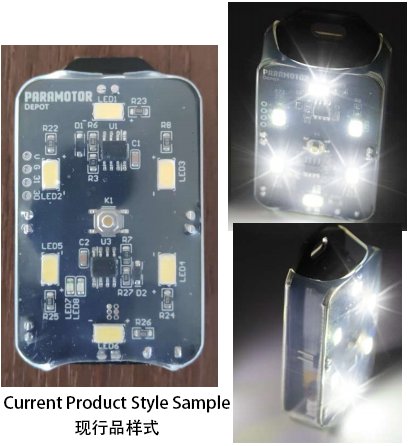

After several rounds of flashing beacon light product finalization and supply, we identified two new areas for improvement based on customer feedback and the characteristics of paragliding:
* Insufficient visibility: The current brightness still limits long-distance visibility in open airspace.
* Impact resistance: Landing bumps and accidental falls may damage the LED.

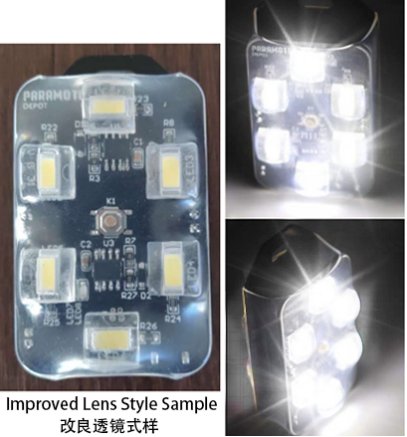

We proactively proposed an upgrade solution to the customer, adding an external LED lens. This improved light focusing efficiency and warning range without altering the existing product architecture, while also enhancing the physical protection of the LED chips. The customer fully approved of this optimization solution, and upgraded versions will be supplied for subsequent orders..

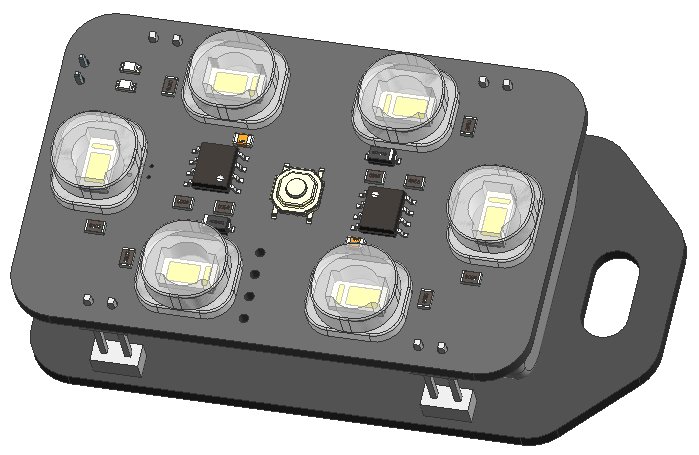

Preview of 3D modeling diagram after upgrade
Cooperation mode: small batch customized engineering landing ability
The Led beacon light market is limited in size, and large factories typically refuse orders due to MOQ (Minimum Order Quantity) requirements or require clients to bear high mold-making costs. Our cooperation model addresses this pain point:
Customized Circuitry: Functional parameters such as lighting operation mode, brightness, battery life, and charging method are designed specifically for client needs by experienced electronics engineers. Clients only need to specify their usage requirements; all other R&D and design work is handled by us..
Structural Adaptability: Quick-release structure, mounting method, and dimensions can be adjusted according to customer equipment, achieving compatibility through processes such as plastic sealing without the need for mold making.
Functional Expansion: Features such as light flashing modes and multi-light signal linkage integration can be developed on demand.
Small Batch Orders: From proof of concept to mass production delivery, we support small-batch orders for niche markets, reducing customers' inventory and financial burden..
If you're looking for a custom LED warning solution supplier for small sports equipment, or if your project has been rejected by large factories due to its small production volume, message us. From circuit design to structural implementation, we'll complete the engineering implementation according to your application scenario..
