Papua New Guinea, a resource-rich region in the South Pacific. In its large open-pit mines, dozens of heavy-duty transport trucks tirelessly shuttle between the mining face and the crushing station, each carrying hundreds of tons of ore. These trucks, nearly ten meters long, have enormous blind spots.
The mining roads are narrow and winding, filled with dust, and the roar of engines mingles with the noise of the machinery. In such an environment, if a transport truck's steering intentions, braking actions, and reversing warnings cannot be promptly recognized by vehicles in front and behind, or by workers, the consequences could be catastrophic.
Our story begins with the client wanting to "replace that mess of lights on the roof.
Customer trouble: more and more roof lights, more and more problems
Last year, we received a request from a new PNG customer. The other party is a local mining service provider, responsible for the maintenance and modification of mine transport vehicles. They listed 1 string of questions in the email:
"Our current transport vehicles have several types of lights on the roof—one for turn signals, another for brake lights, and a separate night light, which isn't very visible when reversing. The wiring is a mess, and vibrations cause poor contact; either one light won't work or another will flicker. Our mechanics have to climb onto the roof several times a month to fix them."
More headache for customers is the security issue. The dust in the mining area is large, the line of sight is poor, and the blind area of the heavy truck itself is large. If the steering and braking signals cannot be clearly and synchronously transmitted to the surrounding vehicles and personnel, it is very easy to collide when meeting or following the vehicle. If only a small warning light is flashing when reversing, it will not remind the personnel in the noise environment.
The client made it clear: "What we need isn't more lights, but one light that solves all the problems."

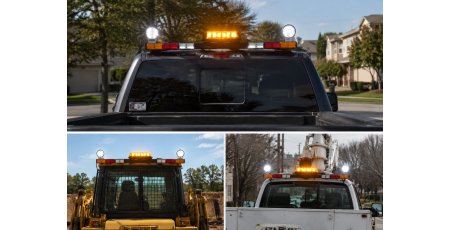

Solution Concept: Transforming "A Bunch of Lights" into "One Light"
We have had several rounds of remote communication with our client to clarify what functions this transport vehicle needs:
• When the vehicle turns, both ends should have bright yellow turn signals that flash simultaneously.
• When the brakes are applied, both ends of the red brake lights should illuminate immediately to alert following vehicles.
• When reverse gear is engaged, both ends of the white reverse lights should illuminate, simultaneously triggering the reverse horn to sound a warning.
• A yellow warning light should be installed in the center, flashing during vehicle operation to increase visibility.
• Two additional front-facing headlights should be integrated into the roof to provide forward visibility for nighttime loading and unloading and road driving.
In other words, this is not just a simple headlight, but an integrated roof-mounted warning and lighting system.
From Design to Loading: Solving the 3 Core Problem
(1) signal synchronization, no error
The electrical system environment of mining transport vehicles is not "clean"—high-power motors start and stop, causing voltage fluctuations, and aging wiring can lead to signal interference. If the warning lights and the vehicle's original signals are not synchronized, or if misjudgments occur (turn signals illuminate when brake lights should), it's more dangerous than not having lights at all.
We designed an independent signal recognition module within the light body, directly connecting to the vehicle's turn, brake, and reverse signal lines, ensuring that every action is accurately captured and responded to instantly. The turn and brake signals use a high-brightness LED array with strong penetration, allowing for clear identification even in dusty environments.
(2) Robust Structure, Convenient Installation
Mine transport vehicles are subjected to high-intensity vibration and shock every day. If the lamp body structure is not strong, or the line connector is loose, it will not take long to malfunction.
Our LED light uses an integrated aluminum alloy body with an overall sealed design achieving IP67 protection, providing dust-proof and water-resistant, and rainproof protection. All electrical interfaces use waterproof connectors, and the wiring is routed inside the light body to avoid exposed wear. The mounting bracket is reinforced and directly fixed to a dedicated mounting position on the roof. Installation time for one vehicle is controlled within half an hour..
(3) reversing warning, sound and light double reminder
In the noise of the mining area, only by the light to reverse the reminder is often not enough. We have integrated a reversing horn in the lamp body, which synchronously triggers a high-decibel buzzer when reverse gear is engaged, and cooperates with the white reversing lights at both ends to form a double warning of sound and light. Even if the rear personnel and vehicles are blocked by dust, they can judge by sound that a vehicle is reversing.
After Installation: From "Repaired a Few Times a Month" to "Almost Forgotten of Its Existence"

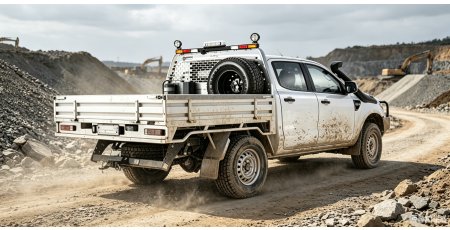

The first batch of combination lights was shipped to Papua New Guinea, where the customer tested them on-site at the mine.
In the test video, a truck fully loaded with ore prepares to reverse in the loading/unloading area. The driver engages reverse gear, and the white reverse lights on both ends of the roof light immediately illuminate, while the reverse horn emits a clear beep. A construction vehicle is working behind; the driver hears the sound and proactively stops to let it pass.
Another video was taken at night. When the transport vehicle is driving on the road in the mining area, the yellow warning light in the middle is always on, the turn signals at both ends flash synchronously when meeting the vehicle, and the red light band lights up instantly when braking. The Led headlights illuminate the road clearly enough so that the driver can see the road conditions in advance.
The customer gave feedback in the follow-up email: "It has been 3 months since the installation, and there has been no signal disorder or light failure. The repairman didn't have to climb the roof anymore, and we even forgot that the roof still had this light-because it had been working normally. "
Write at the end
The safety of transportation in the mining area has never been guaranteed by a certain person's tight nerves at all times, but by a reliable system that silently sends out the correct signal every time it turns, every time it brakes, and every time it reverses. People: "I am here, please pay attention. "
A single light integrates six functions: turning, braking, reversing, illumination, warning, and audible alert. It doesn't need fancy parameters or complex design language.
It only needs to maintain visibility in dust, not loose in vibration, can be heard in noise, and can be seen in the dark.
For the transport vehicles that shuttle on the mine road day and night, this light keeps the safe road between each departure and return.
