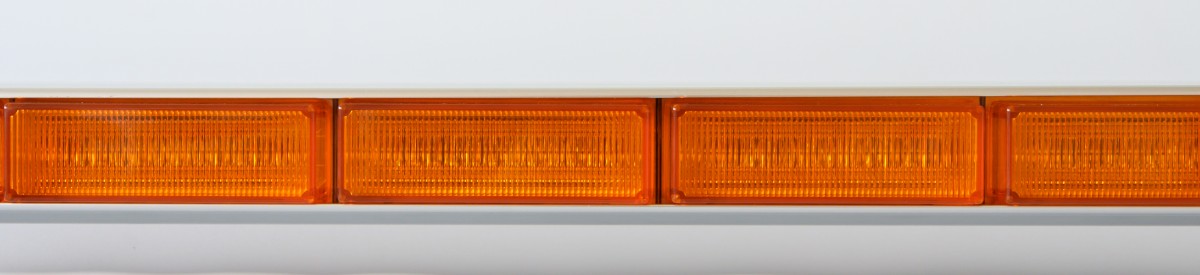

The updated super slim led warning light bar is one of our newest generations of low profile lightbars.
●It is only 5.5cm height.
●Six lengths for choice.
●Full aluminum housing, amber LED modulars all around the light bar.
●Two configurations for this light bar.
●The standard one is 22 LED modules.
●The other one is 18 modules, with 2 shooting lights and 2 front shooting lights, the controller is included for this configuration.
●Light color can be customized by request, LED modulars are available in red, blue, amber, white and combined color.
●Three installation methods, bracket, hook or screw installation.
PRODUCT PARAMETERS
PRODUCT SUPPORT
| Model No. | MLB12-B |
| Voltage | DC 12V/24V |
| Power | 88W |
| Light Source | 1W Led, 3W optional |
| Led Module Qty | 22 pcs |
| Led Qty | 88 pcs |
| Led Color | Red, Blue, Amber, White, Green Available |
| Lens Color | Amber |
| Led Chip | Taiwan |
| Flash Patterns | 15 |
| Material | PC Lens +Aluminum |
| Operting Temprature | -30℃ ～ +75℃ |
| Waterproof Rate | IP65 (Led Module) |
| Switch | Optional |
| Cable | 3m |
| Speaker | NA |
| Product Size | 1160mmx300mmx55mm, Full size optional |
| Weight | 14kg |
| Carton Size | 1230x370x110mm |
| Warranty | 12 months |
| Certification | ISO, E-mark |
| Installation | Mounting Brackets and Hook |
